20' insulated container

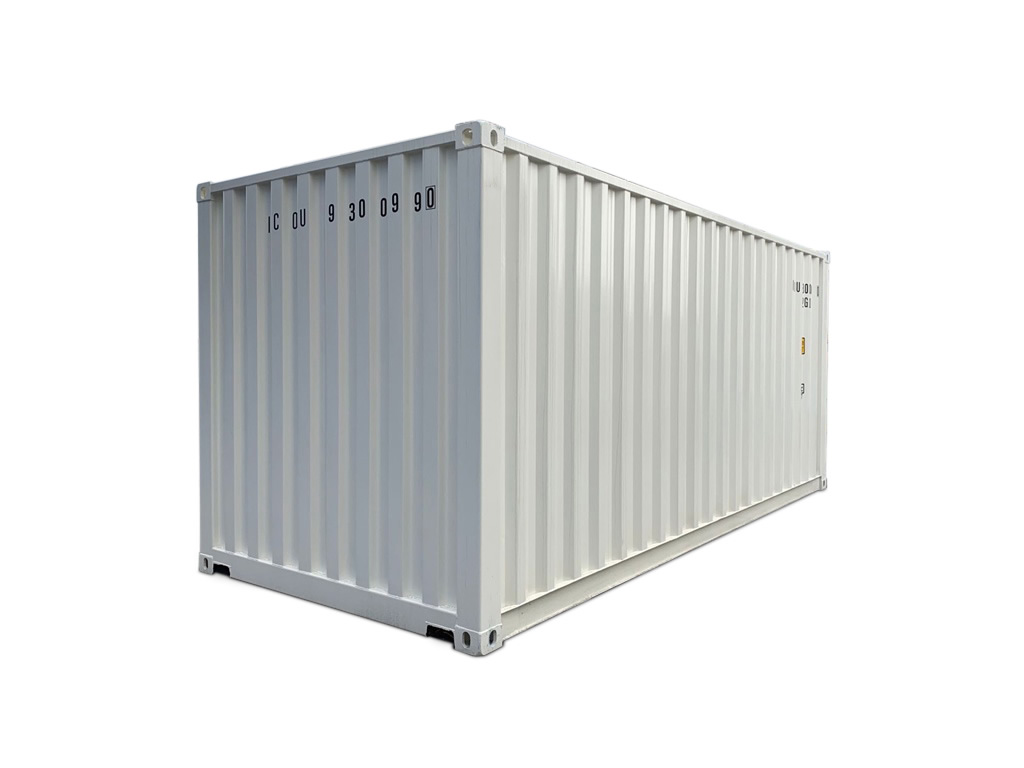

The 20 ft insulated container

The 20 ft insulated container is one of the insulated containers from our portfolio.

  • Its sides, roof and floor are insulated. This makes it less susceptible to changes in outside temperature.
  • Our customers often use the 20ft insulated container as storage for demanding products. For example, it can be used to store temperature-sensitive varnish. The insulation lessens the impact of both heat and cold on the temperature inside the container.
  • The container is also a good space for reconstruction projects, as technical machinery is often sensitive to temperature.

If you’re looking for an additional cooling quality, you should check out the 20 ft reefer container.

Your request

Colour versions

We have our 20 ft insulated containers in the colours

  • RAL 9010 (pure white)

normally in stock.

By using standard colours, the paint can be easily re-ordered for touch-ups.

Your request

Usually in stock

RAL 9010 (pure white)

Dimensions and weights

External dimensions DE US
Length 6.058 mm 19,875 ft
Width 2.438 mm 8 ft
Height 2.591 mm 8 ft 6 in
Internal dimensions DE US
Length 5.840 mm 19,160 ft
Width 2.220 mm 7,283 ft
Height 2.329 mm 7,641 ft
Door opening DE US
Width 2.343 mm 7,687 ft
Height 2.280 mm 7,480 ft
Ratings DE US
Max. Gross weight 30.480 kg 67.200 lb
Tare Weight 3.440 kg 7.580 lb
Payload 27.040 kg 59.620 lb
Int. Cube Capacity 30,2 m³ 1.066 ft³

All technical details of the containers offered are taken from the information available to us from the manufacturers. The information is provided without any guarantee and to the exclusion of any liability. Liability for technical information and resulting consequential costs can only be derived on the basis of an explicit written confirmation of iCON International Container Service GmbH.

The 20ft insulated container is mostly made from corten steel and insulated with polyurethane foam. The floor is steel as well. The 20ft insulated container has a tara weight of 3.440 kg and a maximum payload of 27.040 kg. This adds up to a maximum gross weight of 30.480 kg. The 20ft insulated container has the following measurements outside: 6.058 x 2.438 x 2.591 (length x width x height in mm) and inside: 5.840 x 2.220 x 2.311 (length x width x height in mm). The door opening measures 2.343 x 2.280 mm (width x height). The container’s volume is 30.00 cbm.

Measurements and weight of the 20ft insulated container are subject to certain ISO norms. This, as well as the close cooperation with the manufacturers, ensures consistently high quality.

Special requests regarding color or features can often be implemented during the manufacturing process. We usually have the most common models readily available.

Your request

Description of condition - 20 ft insulated Container

The container is usually sold in mint condition. However, this does include the shipment from Far East. This means small signs of usage and staining may occur. The condition of the 20 ft insulated container is always subject to the latest IICL guidelines though. Please click here for more information.
